Initialization Script: Testcase two outputs to one input

Two generators generate workpieces either of type1 or type2. Processing block has one input and needs to decide of what type incoming WP is. Two workpieces can arrive at the same time at the same input port. A transducer counts completed workpieces.

Preparation
Create the Model
Take a look at the model
Finally

Basic models are take from folder DEVSPATH/01-modelbase/2-outputs-to-1-input.

Call: init_2_out_1_in

File: DEVSPATH/02-examples/discrete/2-outputs-to-1-input/init_2_out_1_in.m

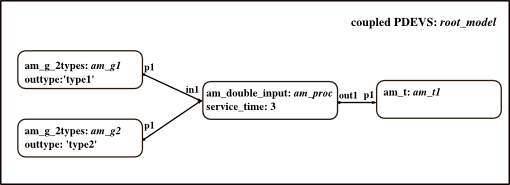

Model Structure

Preparation

close all; clear all; clear classes;

%clc;
global SIMUSTOP % to stop simulation by condition
SIMUSTOP = 0;

global HYBRID
HYBRID = 0; % it's a pure discrete, not a hybrid model

elapsed = 0;

Create the Model

Atomic models' classes: am_g_2types, am_double_input, am_t

% Instantiate two atomic models generator, one generating workpieces of
% type one, the other of type two. Intergeneration times are passed as
% system parameters.
interarrival_time1 = 1;
inistates1 = struct('sigma',interarrival_time1,'counter',0);
am_g1 = am_g_2types('am_g1',inistates1,elapsed,'type1');

interarrival_time2 = 2;
inistates2= struct('sigma',interarrival_time2,'counter',0);
am_g2 = am_g_2types('am_g2',inistates2,elapsed,'type2');

% Instantiate an atomic model assembling server, that assembles the two types,
inistates = struct('phase','passive','sigma',inf,'q1',0,'q2',0);
service_time = 3;
am_proc=am_double_input('am_proc',inistates,elapsed,service_time);


% Instantiate a transducer to count assembled workpieces.
inistates = struct('q',0);
am_t1 = am_t('am_t1',inistates,elapsed);

% Coupled model root_model
y_root = {};
x_root = {};
root_model = coupled('root_model',x_root,y_root);
addcomponents(root_model,{am_g2,am_g1,am_proc,am_t1});
Zid_root = {'am_g1','p1','am_proc','in1';...
            'am_g2','p1','am_proc','in1';...
            'am_proc','out1','am_t1','p1';...
            };
set_Zid(root_model, Zid_root);

Take a look at the model

showall(root_model);
Check(root_model);
set_debug(root_model,1,fopen('debug.txt','w')); % write simulation messages to file debug.txt
set_observe(root_model, 1);% track all state variables in s of atomics

%set_debug(root_model, 1); % if you want to get the simulation messages to
%std-out

Finally

Done! Now the root_coordinator can be called to simulate the model.

root_model = r_c_discrete(root_model,tstart,tend)

Choose for example tstart = 0, tend = 12

Notice: DEBUG is set to 1, so you get simulation messages. Set DEBUG = 2, if you prefer stepwise simulation, or DEBUG = 3 to keep track of x, y and s of atomics.

After simulation you can take a look at states of all atomics by executing the script plot_and_analyze2out1in.

Commands to initialize, simulate, analyse the example:

>> init_2_out_1_in;

>> root_model = r_c_discrete(root_model,0,12);

>> plot_and_analyze2out1in;
