Initialization Script: Quantized Sine
Inits a QSS1 model consisting of a (quantized) sine source and a qss1 integrator.
Contents
Basic models are taken from folder DEVSPATH/01-modelbase/qss.
Call: init_sine_qss1
File: DEVSPATH/02-examples/discrete/sine-qss/init_sine_qss1.m

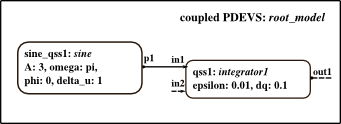

Model Structure
Preparation
%clear classes; clc; global SIMUSTOP % to stop simulation by condition SIMUSTOP = 0; global HYBRID HYBRID = 0; %discrete-only simulation elapsed = 0;
Create the Model
Atomic models' classes: sine_qss1, qss1.
% Coupled DEVS root_model % % Instantiate an atomic DEVS of type sine_qss1 that acts as generator for a % quantized sine wave. frequency = 0.5; % = 1/T A = 3; omega = 2*pi*frequency; phi = 0; delta_u = 1;% system parameters, delta_u is quantization of sine inistates = struct('sigma',0,'tau',phi/omega,'traj',[],'qtraj',[]);% initial values for states sine = sine_qss1('sine',inistates,elapsed,A,omega,phi,delta_u); % Instantiate an atomic DEVS of type qss1. % The qss1 integrator % integrates the sine to a (negative) cosine function. % epsilon = 0.01; dq = 0.1;% system parameters startvalue = -A/(omega)*cos(omega*elapsed+phi); inistates2 = struct('sigma',0,'X',startvalue,'dX',A*sin(omega*inistates.tau+phi),'q',floor(startvalue/dq)*dq,'se',0,'traj',[],'qtraj',[]); integrator1 = qss1('integrator1',inistates2,elapsed,epsilon,dq);
Instantiate the root_model
root_model = coupled('root_model');% in and output ports are always none for root model addcomponents(root_model,{sine,integrator1}); Zid_model = {'sine','p1','integrator1','in1'}; set_Zid(root_model, Zid_model);
Take a look at the model
showall(root_model);
Check(root_model);
set_observe(root_model, 1);% track all state variables in s of atomics
Finally
Done! Now the root_coordinator can be called to simulate the model:
root_model = r_c_discrete(root_model,tstart,tend)
After simulation you can plot the results via plot_sine_qss1(root_model,tstart,tend).
Commands to initialize, simulate, analyze the example:
>> init_sine_qss1;
>> root_model = r_c_discrete(root_model,0,20);
>> plot_sine_qss1(root_model,0,20);
