Initialization Script: Step Test
Inits a QSS1 model consisting of a step source and a qss1 integrator.
Contents
Basic models are taken from folder DEVSPATH/01-modelbase/qss.
Call: init_steptest_qss1
File: DEVSPATH/02-examples/discrete/steps-qss/init_steptest_qss1.m

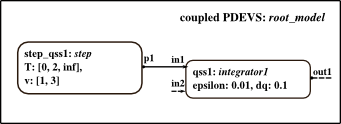

Model Structure
Preparation
%clear classes; clc; global SIMUSTOP % to stop simulation by condition SIMUSTOP = 0; global HYBRID HYBRID = 0; % discrete-only simulation elapsed = 0;
Create the Model
Atomic models' classes: step_qss1, qss1.
% Coupled DEVS root_model % % Instantiate an atomic DEVS of type step_qss % that implements step source. % system parameters T = [0, 2, inf];% times for step v =[1,3]; % values for step, 1 before step, 3 after step inistates = struct('sigma',0,'j',1);% states step = step_qss1('step',inistates,elapsed,T,v); % Instantiate an atomic DEVS of type qss1. % The qss1 integrator % integrates the step to a ramp. % % initial value for integrator epsilon = 0.01; dq = 0.1;% system parameters startvalue = 1; inistates = struct('sigma',0,'X',startvalue,'dX',0,'q',floor(startvalue/dq)*dq,'se',0,'traj',[],'qtraj',[]); integrator1 = qss1('integrator1',inistates,elapsed,epsilon,dq);
Instantiate the root_model
root_model = coupled('root_model');% in and output ports, always none for root model addcomponents(root_model,{step,integrator1}); Zid_model = {'step','p1','integrator1','in1'}; set_Zid(root_model, Zid_model); set_observe(root_model, 1);% track all state variables in s of atomics
Take a look at the model
showall(root_model); Check(root_model);
Finally
Done! Now the root_coordinator can be called to simulate the model:
root_model = r_c_discrete(root_model,tstart,tend)
After simulation you can plot the results via plot_step_qss1(root_model,tstart,tend).
Commands to initialize, simulate, analyze the example:
>> init_steptest_qss1;
>> root_model = r_c_discrete(root_model,0,8);
>> plot_step_qss1(root_model,0,8);
