Initialization Script: Timed Sine
Inits a QSS1 model consisting of a (fixed step) sine source and a qss1 integrator. Sine source emits a sine value every pi/100 units of time.
Contents
Basic models are taken from folder DEVSPATH/01-modelbase/qss1.
Call: init_timed_sine_qss1
File: DEVSPATH/02-examples/discrete/sine-qss/init_timed_sine_qss1.m

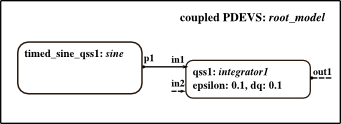

Model Structure
Preparation
clear classes; clc; global SIMUSTOP % to stop simulation by condition SIMUSTOP = 0; global HYBRID HYBRID = 0; % discrete-only simulation elapsed = 0;
Create the Model
Atomic models' classes: timed_sine_qss1, qss1.
% Coupled DEVS root_model % % Instantiate an atomic DEVS of type timed_sine_qss1 that acts as generator for a % (fixed step) discretized sine wave. % A timed-sine outputs a sine value every sigma interval (fixed steps). inistates = struct('sigma',pi/100,'sine',sin(0));% initial values for states sine = timed_sine_qss1('sine',inistates,elapsed); % Instantiate an atomic DEVS of type qss1. % The qss1 integrator % integrates the sine to a (negative) cosine function. % epsilon = 0.1; dq = 0.1; % system parameters sine_start = -1; inistates = struct('sigma',0,'X',sine_start,'dX',sin(0),'q',floor(sine_start/dq)*dq,'se',0,'traj',[],'qtraj',[]); integrator1 = qss1('integrator1',inistates,elapsed,epsilon,dq);
Instantiate the root_model
root_model = coupled('root_model');% in and output ports are always none for root model addcomponents(root_model,{sine,integrator1}); Zid_model = {'sine','p1','integrator1','in1'}; set_Zid(root_model, Zid_model);
Clear workspace and take a look at the model
clearvars -except root_model showall(root_model); Check(root_model); set_observe(root_model, 1);% track all state variables in s of atomics
Finally
Done! Now the root_coordinator can be called to simulate the model:
root_model = r_c_discrete(root_model,tstart,tend)
After simulation you can plot the results via plot_timed_sine_qss1(root_model,tstart,tend).
Commands to initialize, simulate, analyze the example:
>> init_timed_sine_qss1;
>> root_model = r_c_discrete(root_model,0,60);
>> plot_timed_sine_qss1(root_model,0,60);
