Plot for QSS1 Step Test Example

Plots the q-trajectory of an integrated step and the step itself.

Contents

Call: plot_step_qss1(root_model,tstart,tend,T,v,dq,epsilon). T and v are the step parameters (times and values). dq and epsilon of integrator are passed, because we plot the trajectory and would like to have some information in the legend.

File: DEVSPATH/02-examples/discrete/steps-qss/plot_step_qss1.m

function plot_step_qss1(root_model,tstart,tend)

    % get some system parameters for figure titles and plot of the step
    % signal
    dq = root_model.components.integrator1.sysparams.dq;
    epsilon = root_model.components.integrator1.sysparams.epsilon;
    T = root_model.components.step.sysparams.T;
    v = root_model.components.step.sysparams.v;

Plot via Manually Tracked States

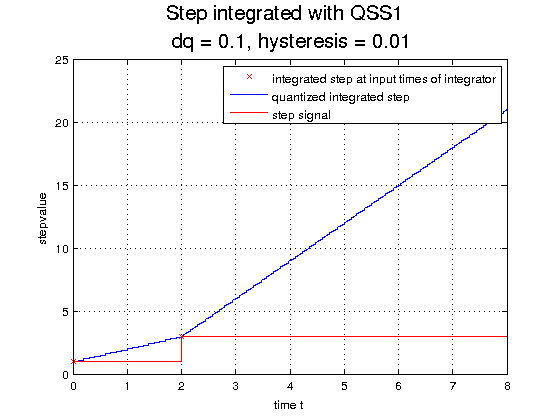

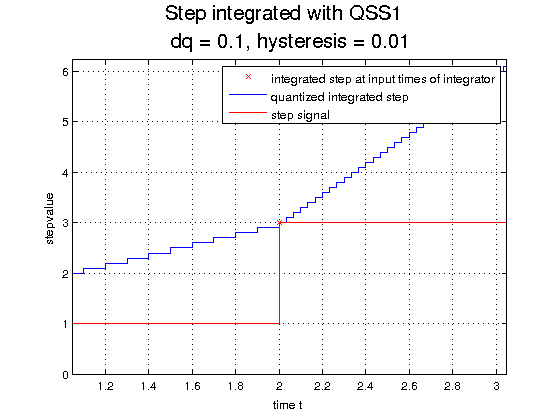

    figure('name','Plot steptest qss1 via manually tracked states','NumberTitle','off')
    plot(root_model.components.integrator1.s.traj(:,1),root_model.components.integrator1.s.traj(:,2),'rx')
    hold on
    grid on
    stairs(root_model.components.integrator1.s.qtraj(:,1),root_model.components.integrator1.s.qtraj(:,2))

    title(['Step integrated with QSS1 \newline dq = ',num2str(dq),', hysteresis = ',num2str(epsilon)],'FontSize',16);
    xlabel('time t');

    legend  'integrated step at input times of integrator' 'quantized integrated step'
    hold on
    hold off

    x=([tstart:0.1:T(2),T(2):0.1:tend]);
    y_before= ones(1,length(tstart:0.1:T(2)))*v(1);
    y_after= ones(1,length(T(2):0.1:tend))*v(2);
    hold on
    plot(x,[y_before,y_after],'r');

    legend  'integrated step at input times of integrator' 'quantized integrated step' 'step signal';

    plot([tstart tend],[0 0]); % zero line

    hold off

Plot with the Observe Functionality

prerequisite: set observe_flag to 1 before simulation

    figure('name','Plot step via observed states','NumberTitle','off');
    integrator1_t_values = [root_model.components.integrator1.observed{:,1}];
    integrator1_states = [root_model.components.integrator1.observed{:,2}];
    integrator1_X = [integrator1_states.X];
    integrator1_q = [integrator1_states.q];
    plot(integrator1_t_values,integrator1_X,'rx');
    hold on
    grid on
    stairs(integrator1_t_values,integrator1_q);
    plot(x,[y_before,y_after],'r');
    title(['Step integrated with QSS1 \newline dq = ',num2str(dq),', hysteresis = ',num2str(epsilon)],'FontSize',16);
    xlabel('time t');

    legend  's.X' 's.q' 'step signal';

end

---
