Initialization Script: 3 Bouncing Balls

Inits a combined discrete-continuous model of three bouncing balls with different attenuations. Two balls bouncing from the beginning, the third ball is started by a discrete event after 6 seconds.

Preparation
Create the Model
After Incarnation
Define some values for ODE-Plot
Finally

Call: init_3_balls

File: DEVSPATH/02-examples/hybrid/bouncing_balls/init_3_balls.m

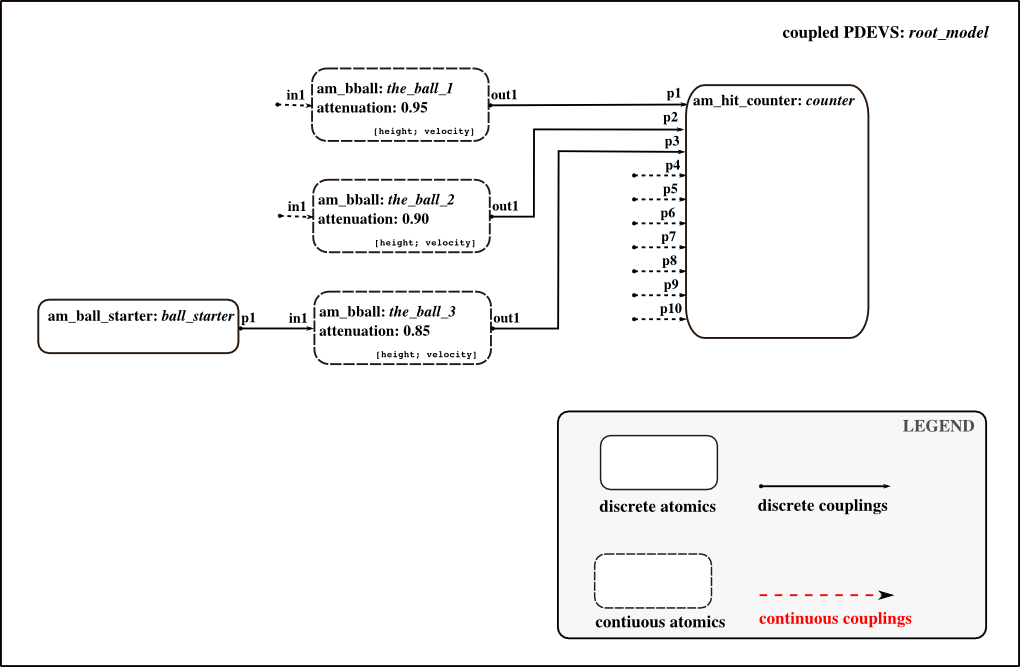

Model Structure

Preparation

global SIMUSTOP % to stop simulation by condition
SIMUSTOP = 0;

global HYBRID
HYBRID = 1; % it's a hybrid model

elapsed = 0;

Create the Model

Atomic model's classes: am_ball_starter, am_bbball, am_hit_counter

Components for coupled model root_model Since hybrid DEVs is still in experimental phase, hybrid models need to be flattenend, so that there is no hierarchy.

Take care to choose different seeds for random number generators!

% Starts third ball after 6 s defined in s.sigma
% This is a discrete atomic.
inistates = struct('sigma',6);
ball_starter = am_ball_starter('ball_start',inistates,elapsed);


% Parameters for the 3 balls
heigth = 0;     % [m]
velocity = 6; % [m/s]

% First ball. Bouncing from start.
% This is a hybrid atomic.
d_inistates = struct('sigma',inf,'active',1,'bounce_start',elapsed,'bounce_end',[]);
c_inistates = [heigth; velocity];
attenuation = 0.95;
the_ball_1 = am_bball('the_ball_1',d_inistates,c_inistates,elapsed,attenuation);

% Second ball. Bouncing from start.
% This is a hybrid atomic.
d_inistates = struct('sigma',inf,'active',1,'bounce_start',elapsed,'bounce_end',[]);
c_inistates = [heigth; velocity];
attenuation = 0.90;
%    MODELBASE.the_ball_2 = {a_type,a_name,d_inistates,c_inistates,elapsed,attenuation};
the_ball_2 = am_bball('the_ball_2',d_inistates,c_inistates,elapsed,attenuation);


% Third ball. Inactive at start. When this ball receives an event from
% ball starter, it starts bouncing.
% This is a hybrid atomic.
d_inistates = struct('sigma',inf,'active',0,'bounce_start',[],'bounce_end',[]);
c_inistates = [heigth; velocity];
attenuation = 0.85;
the_ball_3 = am_bball('the_ball_3',d_inistates,c_inistates,elapsed,attenuation);

% Sink for countig the number of hits to the ground of all balls
% This is a discrete atomic.
inistates = struct('sigma',inf,'num_hits',[0,0,0,0,0,0,0,0,0,0]);
hit_counter = am_hit_counter('hit_count',inistates,elapsed);

% Hybrid coupled model root_model
y_root = {};
x_root = {};
root_model = hybridcoupled('root_model',x_root,y_root);
addcomponents(root_model,{ball_starter,the_ball_1,the_ball_2,the_ball_3,hit_counter});
Zid_model = {'ball_start','p1','the_ball_3','in1';...% start signal from starter to third ball, message: 'start'
             'the_ball_1','out1','hit_count','p1';... % hits from first ball to counter, message: 1
             'the_ball_2','out1','hit_count','p2';... % hits from second ball to counter, message: 1
             'the_ball_3','out1','hit_count','p3'};   % hits from third ball to counter, message: 1
set_Zid(root_model, Zid_model);
CZid_model = {};% no continuous couplings, continuous variables of balls don't influence each other
%set_CZid(root_model, CZid_model);

After Incarnation

Display and check the outermost coupled. If you like to, set the observe flag to 1, so that all discrete state variables in s are tracked automatically.

showall(root_model);
% set_observe(root_model, 1);
Check(root_model);

Because we did not connect all ports, the Check() function results in:

No problem here - it is just a warning and we did it on purpose. ;-)

Define some values for ODE-Plot

Continuous variables can be plotted during simulation, if desired. If you want this, define here:

global ODEPLOT
ODEPLOT = 1;

% if ODEPLOT is set, following structure needs to be definend:
plot_params = struct('OutputSel_vec',[1 3 5],...        % decide, which continuous variables are to be plotted. HERE: TruckLevel, TankLevel, CannerLevel
                     'name_strg','Hybrid Example',...   % name of the figure
                     'xlim_interv',[0 30],...           % xlim of axes
                     'ylim_interv',[-0.01 2],...        % ylim of axes
                     'xlabel_strg','time [sec]',...     % label for x-axes
                     'ylabel_strg','height [m]',...     % label for y-axes
                     'title_strg','3 Bouncing Balls',...% title for plot
                     'num_legend', 3,...                % number of variables, for which a legend is supported
                     'legend1','ball 1','legend2','ball 2','legend3','ball 3');% legend texts

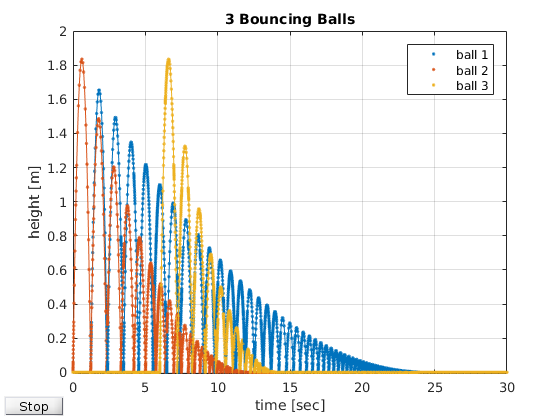

ODEPLOT = 1 results in:

Finally

Done! Now the root_coordinator can be called to simulate the model.

without plotting: [root_model,tout,yout,teout,yeout,ieout]=r_c_hybrid(root_model,tstart,tend)

with plotting: [root_model,tout,yout,teout,yeout,ieout]=r_c_hybrid(root_model,tstart,tend,plot_params)

To simulate a scenario that fits with ODE-Plot settings above use tstart = 0, tend = 30

After simulation you can get some statistics and plot the results via analyse_3_balls(root_model,tstart,tend,tout,yout)

Commands to initialize, simulate, analyse the example:

>> init_3_balls;

>> [root_model,tout,yout,teout,yeout,ieout] = r_c_hybrid(root_model,0,30,plot_params);

>> analyse_3_balls(root_model,0,30,tout,yout);
