Using the Toolbox API

Motivation

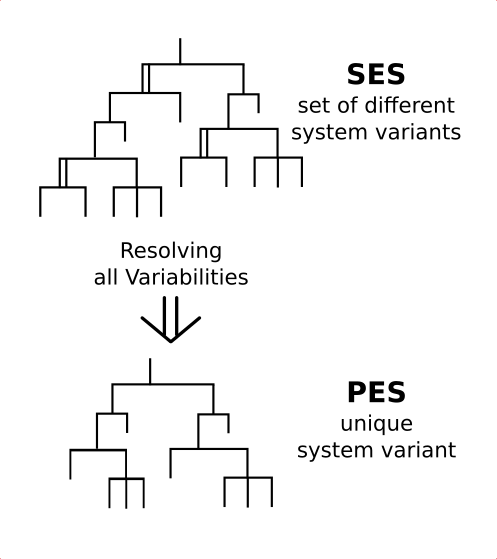

This example shows, how you can use the toolbox API for pruning your SES apart from the Editor with a MATLAB script. The SES here is taken from example 3, which specifies two system variants.

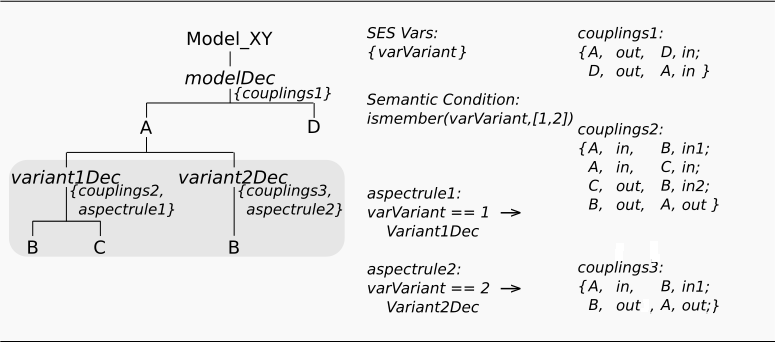

Basic SES:

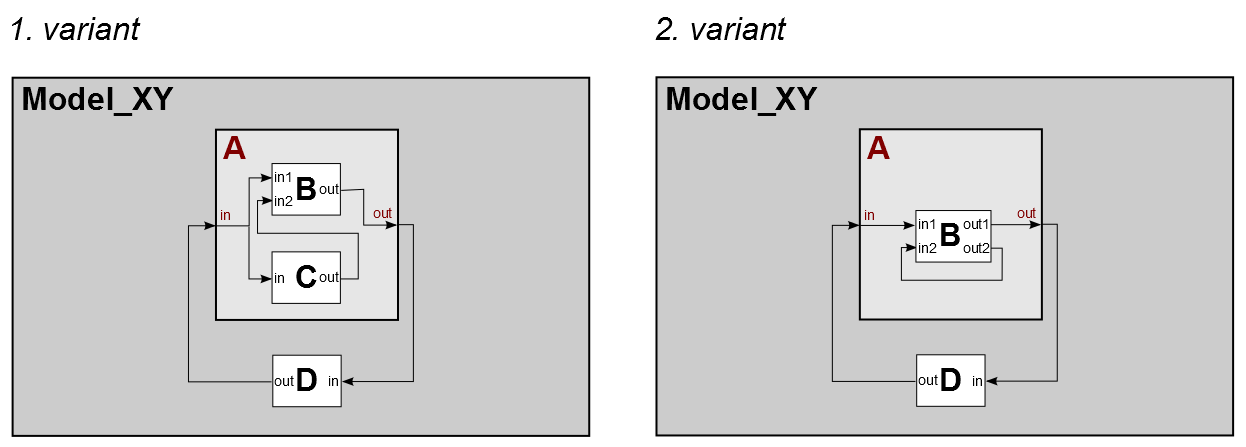

In the SES specified model structures:

Description

Have a look to the M-file in the example's directory and execute it at the MATLAB prompt. Subsequently, we will explain some fundamental things.

Transferring SES Variables

SES Variables provide the input interface for an SES. All input SES Variables are collected in a cell array. It will look like this:

{SES_Variable1,SES_Variable2,SES_Variable3...}

Each SES Variable itself is a cell array of length 2. The first cell contains the name of the SES Variable as string and the second cell defines the value of the SES Variable.

{'myVar1',12.4564}  or  {'vecVar',[1,2,3,4,5]}  or  {'specVar',2}

Summarized, it may look like this:

{ {'myVar1',12.4564}  ,  {'vecVar',[1,2,3,4,5]}  ,  {'specVar',2} }

The order of the SES Variables in the cell array is not important.

The M-Script

The procedure of using the API for pruning can be separated into 3 steps:

%Load your saved SES and save it to a variable of your choice
load('B10_modelSES.mat');
mySES = new;
%Create a PES object and transfer the SES
newPES = pes(mySES);
%start the complete pruning operation and
%transfer the input SES Variables with their values
newPES.prune({{'varVariant',1}});
%optional: save PES
myPES.save('PES_varVariant_is_1.mat')

If you need another variant it is enough to repeat the 3rd step with your changed variable values.

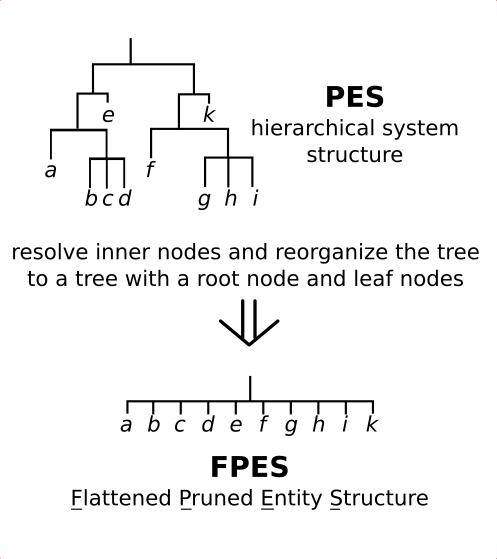

Flattening

If you want to use the Flattening method you need to create an FPES object instead of an PES object.

%Load your saved SES and save it to a variable of your choice
load('modelSES.mat');
mySES = new;
%Create a FPES object and transfer the SES
newFPES = newFPES = fpes(mySES);
%start the pruning operation and
%transfer the input SES Variables with their values
newFPES.prune({{'varVariant',1}});
%flattening of the PES
newFPES.flatten;
%optional: save FPES
myFPES.save('FPES_varVariant_is_1.mat')
%optional: get Results of FPES
[LeafNodes,Coupling,Parameters,Validity] = myFPES.getResults;
